Thin Compact Push Pull Hydraulic Cylinder / Double Ended Hydraulic Cylinder

Product Categories

Dongguan Jiazheng Hydraulic Technology Co, LTD

Contact Now

Name: Thin Compact Push Pull Hydraulic Cylinder Double Ended Hydraulic Cylinder
Brand: Jiayan
Price: 1 USD

Brand Name : Jiayan

Model Number : LA/LW

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, paypal

Supply Ability : 300 sets per week

Delivery Time : 7 days

Packaging Details : poly bag and carton box

Material : Carbon Steel

Mounting Type : Side-mounted Single or Double End Rod Type

Max. Stroke : 50mm

Max. Bore of Cylinder : 63mm

Flow Speed : 8-100mm/sec

Warranty : 1 year (change new one for free)

Contact Now

Side-mounted Single End Rod Type And Double End Rod Type Thin Hydraulic Cylinder Machining Fixture Cylinder

Ordering Code

CHTB - LA 32×20 N

1 2 3 4 5

1	Series	CHTB
2	Mounting type	LA:Side-mounted single end rod type LW:Side-mounted double end rod type
3	Bore of Cylinder	Φ32 , Φ40 , Φ50 , Φ63
4	Standard stroke	Please refer to the <stroke specification>
5	Rod end type	N: Female thread N W:Male thread W

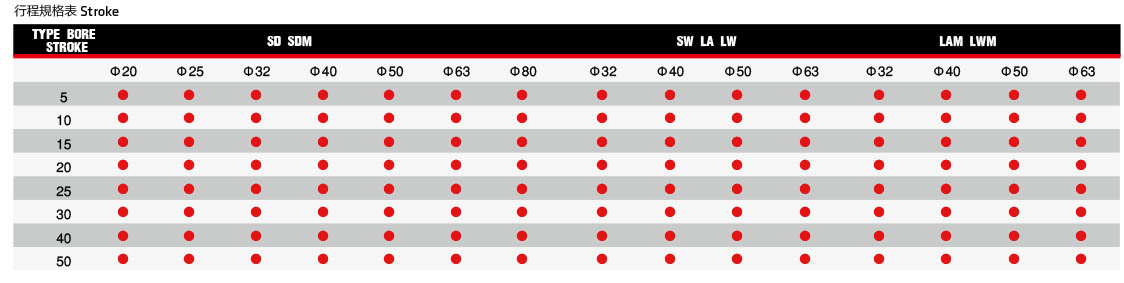

Hydraulic Cylinder Stroke Specifications

Thin Compact Push Pull Hydraulic Cylinder / Double Ended Hydraulic Cylinder

Pressure

Bores of Cylinde Dia.of Piston Area (cm2) OPERATION PRESSURE(kgf/cm2) Temperature

Thin Compact Push Pull Hydraulic Cylinder / Double Ended Hydraulic Cylinder

CHTB Hydraulic Cylinder Side-mounting type LA&LW
