Block Dual Action Hydraulic Cylinder High Pressure Withstanding Performance

Name: Block Dual Action Hydraulic Cylinder High Pressure Withstanding Performance
Brand: Jiayan
Price: 1 USD

Brand Name : Jiayan

Model Number : HBC

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union , PayPal

Supply Ability : 500 sets per week

Delivery Time : 7 days

Packaging Details : poly bag and carton box

Material : Carbon Steel

Max. operating pressure : 300 kgf/cm2

Min. operating pressure : 100 kgf/cm2

Acting Type : Single acting and Double acting

Mounting Type : Axial bolt Mounting or Side mounting

Warranty : 1 year (change new one for free)

Contact Now

Block Push Pull Hydraulic Cylinder Double Acting Cylinder High Pressure Withstanding Performance

FEATURES

1.This series of hydraulic cylinder complies with Germany specifications.

2.Employ imported oil seal for outstanding pressure withstanding.

3.Standardized specification and can be used on many different machines and machining

center.

4. Mounting Type: axial and side mounting.

5.Single and double acting are available.
6.Max. operating pressure: 300 kgf/cm2

Min. operating pressure: 100 kgf/cm2

If the operation pressure is over 300 kgf/cm2 , the cylinders are needed to customized.

Ordering Code

HBC- 32 S 20

1 2 3 4

1	Series	HBC
2	Bore of Cylinder	Φ16,Φ25,Φ32,Φ40
3	Acting type	S Single-acting D Double-acting

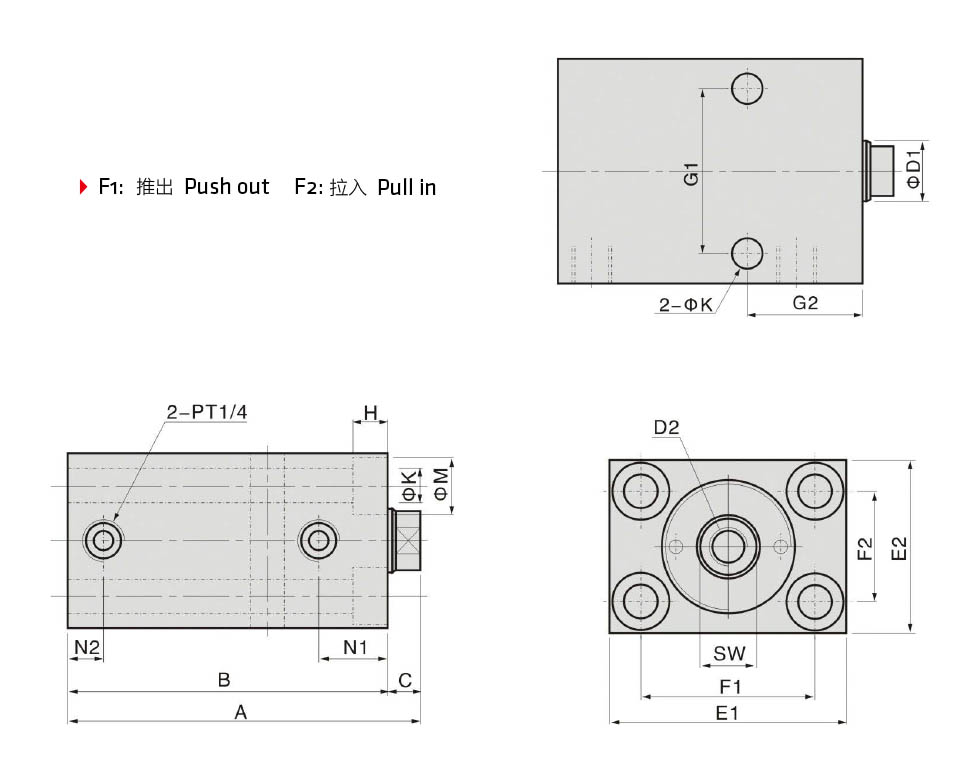

4	Standard stroke	Refer to the dimension table

Block Dual Action Hydraulic Cylinder High Pressure Withstanding Performance

Cylinder Clamping Force :

OPERATION PRESSURE(kgf/cm2)

Bores of Cylinder Diameter of Piston Pressure Area (cm2) and Clamping force

Block Dual Action Hydraulic Cylinder High Pressure Withstanding Performance
