Welding Toggle Clamps101A U Shape Bar Rubber Cap Spindle Destaco 201-U

Brand Name : dls

Model Number : 101-A

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,PayPal

Supply Ability : 2000 pcs per week

Delivery Time : 7 days

Packaging Details : Poly bag and carton box

Material : cold-rolled sheet

WEIGHT : 71g

HOLDING CAPACITY : 50kg

SPINDLE SUPPLIED : M5x40

BAR OPENS : 100 degree

HANDLE OPENS : 56 degree

Cross Reference : Destaco 201-U

Warranty : 1 year

Contact Now

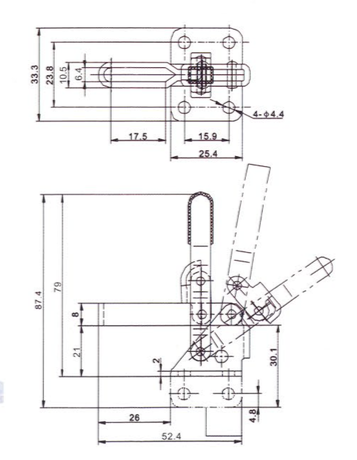

Vertical Toggle Clamp 101 - A U-shaped Clamping Bar Flanged Base With Rubber Cap Spindle Cross Reference Destaco 201-U

Product Specification :

WEIGHT : 71g
HOLDING CAPACITY : 50kg

SPINDLE SUPPLIED : M5x40
BAR OPENS : 100 degree

HANDLE OPENS : 56 degree

Features and Application:

1. Anti-Slip U Shape Toggle Clamp
2. Ideal for quickly holding down sheet metal or circuit boards, for machine operation, welding, mould, electronic equipment assembly, etc field.
3.Side Mount hold-down toggle clamp, U bar, flanged base. With rubber cap spindle.

4.Plastic cover handle for easy, safe and comfortable operation.
