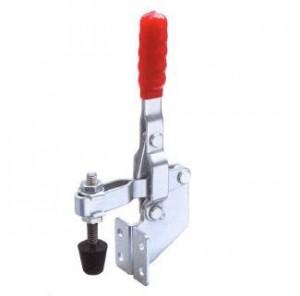

Small Vertical Toggle Clamp 101DL Side Mounted Fixture Corrosion Resistance

Brand Name : dls

Model Number : 101DL

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 5 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,PayPal

Supply Ability : 3000 pcs per week

Delivery Time : 7 days

Packaging Details : poly bag and carton

Material : Cold Roll Sheet

WEIGHT : 350g

HOLDING CAPACITY : 180kg

SPINDLE SUPPLIED : M8x60

BAR OPENS : 90 degree

HANDLE OPENS : 65 degree

Contact Now

Vertical Toggle Clamp 101DL Side Mounted Fixture Zinc-plated Surface for Corrosion Resistance

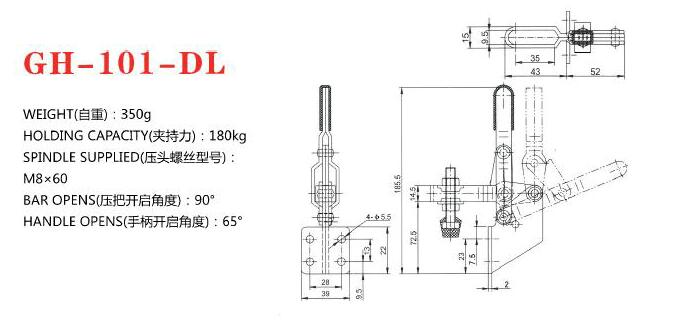

Product Specification and features:

WEIGHT : 350g
HOLDING CAPACITY : 180kg

SPINDLE SUPPLIED : M8x60
BAR OPENS: 90 degree

HANDLE OPENS: 65 degree

1.Oil and Stain resistant red vinyl hand grips.

2.The heavy-duty loading toggle clamps is ideal for quickly holding down sheet metal, circuit boards, toggle case, trunk, dishwasher, machine operation etc..

3.ergonomic ribbed-plastic handle

Small Vertical Toggle Clamp 101DL Side Mounted Fixture Corrosion Resistance
