Vertical Quick Release Toggle Clamp 12145 Hold Capacity 227kg Destaco 207-SB

Name: Vertical Quick Release Toggle Clamp 12145 Hold Capacity 227kg Destaco 207SB
Brand: Jiayan
Price: 1 USD

Wholesale Vertical Quick Release Toggle Clamp 12145 Hold Capacity 227kg Destaco 207-SB from china suppliers

Brand Name : Jiayan

Model Number : 12145

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 5 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,PayPal

Supply Ability : 3000pcs per week

Delivery Time : 8 days

Packaging Details : poly bag and carton box

Material : Cold Roll Sheet

Weight : 340g

Bar Opens : 100 degree

Handle Opens : 60 degree

Surface Finish : Zinc-plated

Warranty : 1 year

Contact Now

Vertical Quick Release Clamp 12145 Hold Capacity 227kg Destaco 207-SB Straight Mounting Base

Product Specification and features:

Material :Cold Roll Sheet

Weight :340g

Bar Opens:100 degree

Handle Opens:60 degree

Surface Finish:Zinc-plated

Warranty:1 year

Features:

1.short solid bar, straight base ,straight handle veritcal Toggle Clamp
2.Weight 0.75pounds,holding capacity 500lbs
3.Spindle supplied: rubber head
4.Cross reference (destaco 207-SB)

Vertical Quick Release Toggle Clamp 12145 Hold Capacity 227kg Destaco 207-SB

Product Tags:

vertical hold down toggle clamp

90 degree toggle clamp

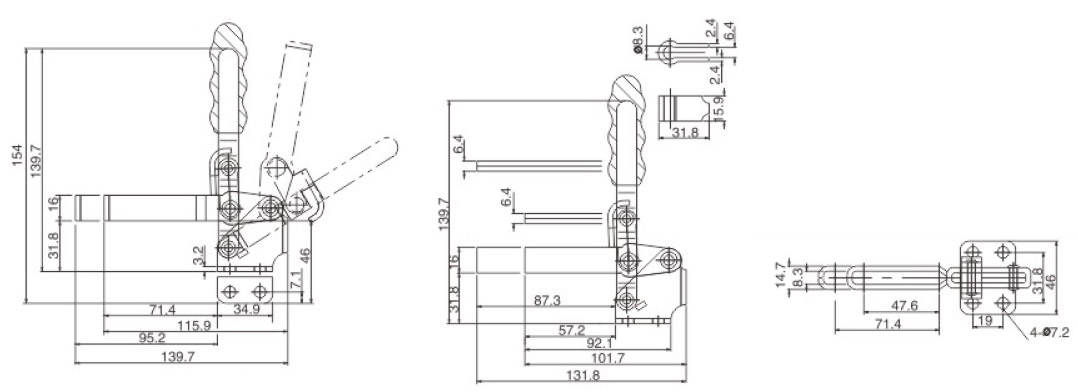

Vertical Quick Release Toggle Clamp 12145 Hold Capacity 227kg Destaco 207-SB Images
