Anti - Rust Hydraulic Control Valve , In Line Hydraulic Flow Control Valve

Name: Anti Rust Hydraulic Control Valve In Line Hydraulic Flow Control Valve
Brand: Jiayan
Price: 1 USD

Wholesale Anti - Rust Hydraulic Control Valve , In Line Hydraulic Flow Control Valve from china suppliers

Brand Name : Jiayan

Model Number : CBSP

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 400 sets per week

Delivery Time : 7 days

Packaging Details : poly bag and carton box

Material : Carbon Steel

Operating pressure range : 2.5 ~ 7.0MPa

Starting Pressure : 0.05 Mpa

MIN. PASSAGE AREA : 24 mm2

OPERATING TEMPERATURE : 0 ~ 70 °C

Weight : 1.1-1.5 kgs

Warranty : 1 year (change new one for free)

Contact Now

Non-leak Pilot Check Valve Max Operation 7.0MPa Pressure Maintaining Type Special Treatment Surface to Resist Rust

Features:

When the pressure supply of pressure source is cut off, the pressure can be kept unchanged until the oil pressure is supplied to the oil control port.

Type:

Modular Model

Operating pressure range 2.5 ~ 7.0MPa

Ordering Code:

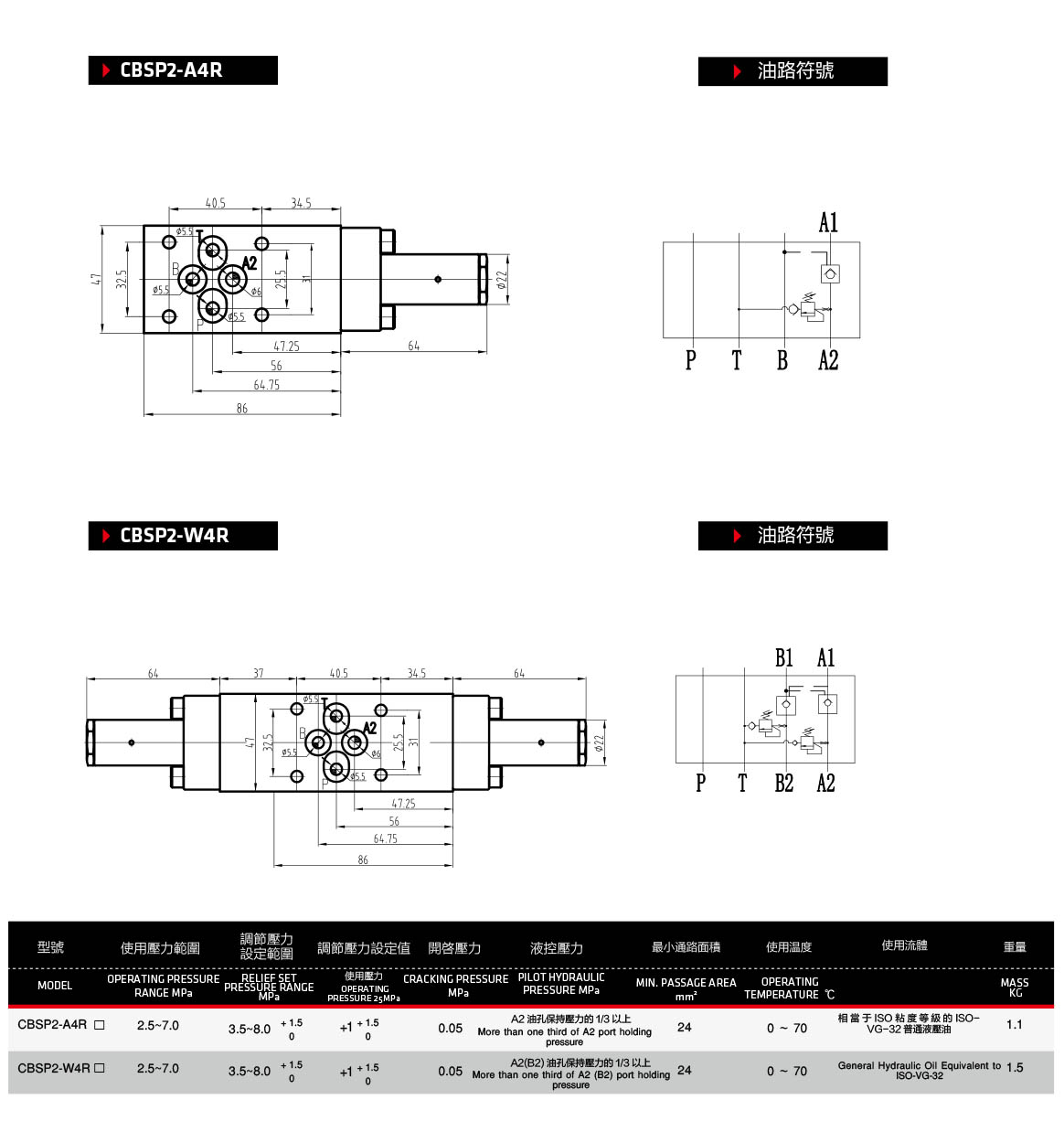

CBSP - 2 - W 4R (8.0MPa)

1 2 3 4 5

1	Series
2	Pressure Code ;	2 : Operating Pressure Range 2.0 ~ 7.0MPa
3	Circuit Symbol	A: A port check ;W:A/B Port Check
4	Pressure Maintain Valve/ adjusting set code	Blank:No Pressure Maintain Valve 4R: With Pressure Maintain Valve, adjusting Set Pressure Range 3.5 ~ 8.0 MPa
5	Operating Pressure (Only with Pressure Maintain Valve)	Please inform us of operating pressure (Supply pressure to P-port). (Please inform us with proper unit symbols.) Please refer to the specification for relief set pressure.

Note:

Blank : Without Pressure Maintain Valve

4MPa → (4.0MPa) With Pressure Compensating Valve, Operating Pressure (P Port Supply Pressure):4MPa → (4.0MPa

Anti - Rust Hydraulic Control Valve , In Line Hydraulic Flow Control Valve

Cautions:

1.Please take consider of pressure drop caused by hydraulic temperature drop in the use of holding the hydraulic pressure of A2(B2) port while stop the hydraulic supply to A1(B1) port

2.This pressure relief valve is used for relieving the amount of hydraulic pressure by which of volume increases because of hydraulic temperature rise.

This product can not be used for relieving the supply pressure that is out of relief set pressure range.

3. Note for pressure compensating valve : When it has back-pressure at T port, there is a possibility that it is not able to do relief action normally. Please contact us.

Product Tags:

hydraulic pressure control valve

hydraulic flow control valve

Anti - Rust Hydraulic Control Valve , In Line Hydraulic Flow Control Valve Images
