Hold Down Pneumatic Toggle Clamp 12132A U Bar Carrlane CL-1000-PTC

Name: Hold Down Pneumatic Toggle Clamp 12132A U Bar Carrlane CL1000PTC
Brand: Jiayan
Price: 1 USD

Brand Name : Jiayan

Model Number : 12132A

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 pc

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,PayPal

Supply Ability : 1000 pcs per week

Delivery Time : 8 days

Packaging Details : poly bag and carton box

Structure : aluminium alloy air cylinder and toggle clamp

Weight : 900g

Holding Capacity : 227kgs

Bar Opens : 100 degree

Bore of Cylinder : 30mm

port size : G1/8"

Warranty : 1 year

Contact Now

Pneumatic Toggle Clamp 12132A Air Powered Hold Down Clamp With U Bar Carrlane CL-1000-PTC

Product Specification

Structure:aluminium alloy air cylinder and toggle clamp

Weight:900g

Holding Capacity:227kgs

Bar Opens:100 degree

Bore of Cylinder:30mm

Port size:G1/8"

Product Features

Air Powered Clamps (Carrlane CL-1000-PTC)
Great for machine operation, welding, mould, electronic equipment assembly, etc field
Material : Metal, Plastic; Package : 1 x Toggle Clamp
HOLDING CAPACITY 499.4Ibs
with port size G1/8"

Hold Down Pneumatic Toggle Clamp 12132A U Bar Carrlane CL-1000-PTC

Product Tags:

air powered toggle clamps

pneumatic hold down clamps

Wholesale Hold Down Pneumatic Toggle Clamp 12132A U Bar Carrlane CL-1000-PTC from china suppliers

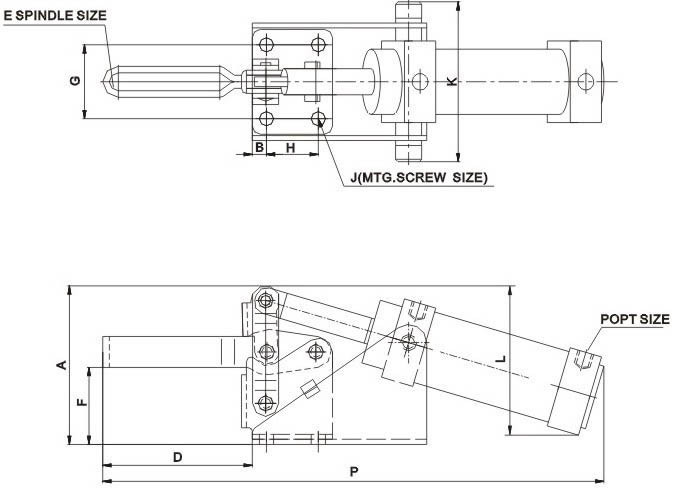

Hold Down Pneumatic Toggle Clamp 12132A U Bar Carrlane CL-1000-PTC Images
