Upper Flange Small Pneumatic Clamps High Precision Heat Treated Surface

Name: Upper Flange Small Pneumatic Clamps High Precision Heat Treated Surface
Brand: Jiayan
Price: 1 USD

Wholesale Upper Flange Small Pneumatic Clamps High Precision Heat Treated Surface from china suppliers

Brand Name : Jiayan

Model Number : RSU

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300 sets per week

Delivery Time : 7 days

Packaging Details : inner poly bag outer carton box

Material : Aluminum Alloy

Max. operating pressure : 7 kgf/cm2

Min. operating pressure : 3 kgf/cm2

Range of temperature : -10~+60°C

Acting Type : doubling acting

Rotating Direction : R or L

Max Stroke : 32

Contact Now

High Precision Upper Flange Swing Clamp Heat-treated Surface for Wear Resisting Aluminum Alloy Cylinder Good Seal

Feature:

1.Maily used on fixture equipment , all air goes in and goes out through the hole on flange.

2.Body material Aluminum Alloy , surface is heat-treated for Wear Resisting

3.The swing clamp is mounted by four holes on flange

4.For customized clamp arm, please don't exceed 1.5 times of the original length and weight.

Specifications

Type	RSU-25	RSU-32	RSU-40	RSU-50	RSU-63
Bore of cylinder	Φ25	Φ32	Φ40	Φ50	Φ63
Dia of Pistion	Φ14	Φ16	Φ16	Φ20	Φ20
Swing Stroke (mm)	13	16	15	17	15
Clamping Stroke	14	14	15	15	15
Press Area pull/push	3.4/4.91	6.04/8.04	10.56/12.57	16.49/19.63	28.03/31.17
Theoretical Clamping Force 5kg/cm²	16kgs	30kgs	50kgs	85kgs	140kgs
Fluid	Filtered Air
Normal Operation Pressure	4-7kg/cm²
Rotating Direction	Turn Right or Turn Left

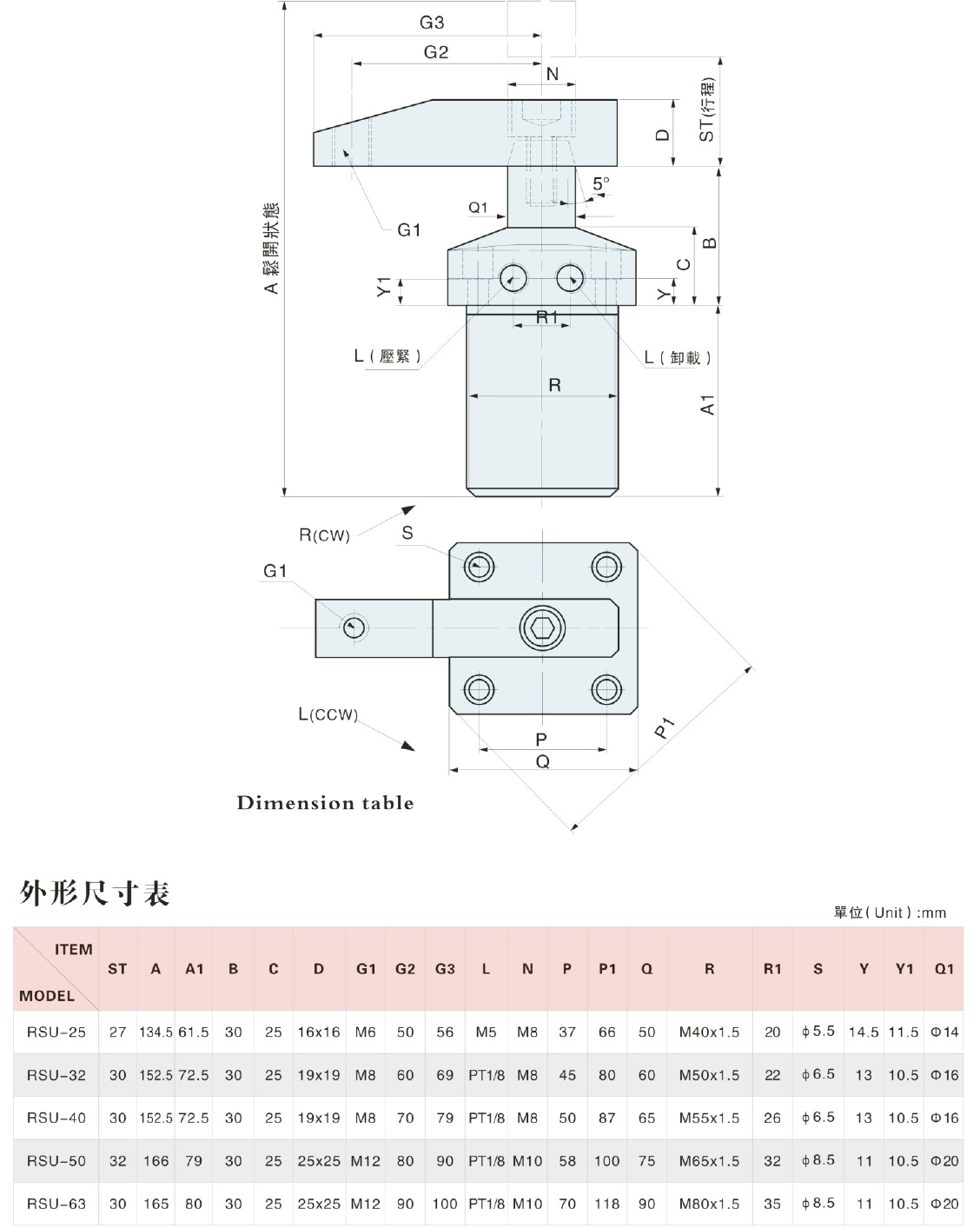

Rotating Angle	Standard angle90°(±2°),Optinal angle 0°(±2°), 45°(±2°), 60° (±2°)
Acting Type	Double Acting
Mounting Type	Upper Flange

Order Code

RSU L-40x90

RUS

Series

RSU

Rotating Direction

Turn Right or Turn Left

Bore of cylinder

Φ25,Φ32,Φ40,Φ50,Φ63

Rotating Angle

Standard angle90°(±2°); Optinal angle0°(±2°), 45°(±2°), 60° (±2°)

Upper Flange Small Pneumatic Clamps High Precision Heat Treated Surface
